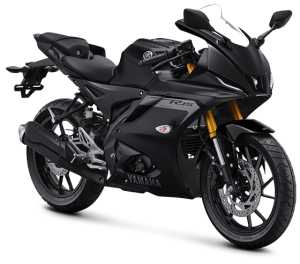

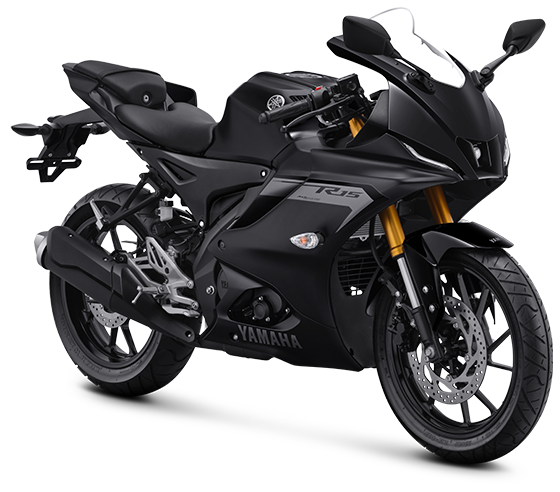

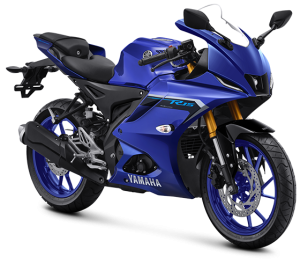

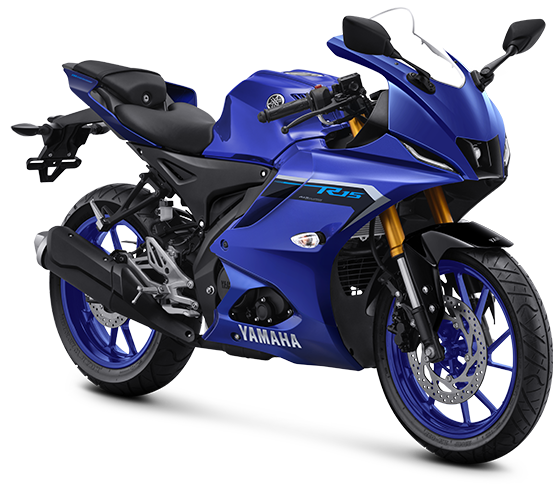

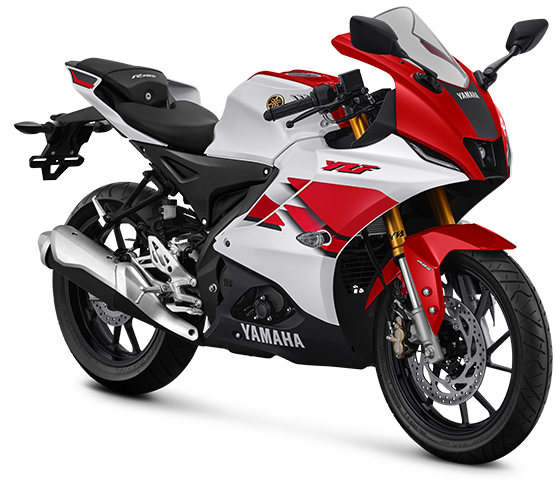

SPESIFIKASI YAMAHA ALL NEW R15 VVA
Mesin
| TIPE MESIN | Liquid Cooled 4-Stroke, SOHC, 4 Valve, VVA |
| Volume Cylinder | 155.1cc |
| JUMLAH / POSISI SILINDER | Single cylinder |
| DIAMETER X LANGKAH | 58,0 x 58,7 mm |
| PERBANDINGAN KOMPRESI | 11.6 ± 0.4 : 1 |
| DAYA MAKSIMUM | 14,2 kW/10000rpm |
| TORSI MAKSIMUM | 14,7 Nm/8500rpm |
| SISTEM STARTER | Electric starter |
| SISTEM PELUMASAN | Wet sump |
| KAPASITAS OLI MESIN | Total =1.05L ;Berkala = 0.85 L ;Ganti Filter Oli = 0.95 L |
| SISTEM BAHAN BAKAR | Fuel Injection |
| TIPE KOPLING | Wet Type Multi-Plate Clutch; Assist & Slipper Clutch |
| TIPE TRANSMISI | Manual |
Dimensi
| P X L X T | 1990mm X 725mm X 1135mm |
| JARAK TERENDAH KE TANAH | 155mm |
| TINGGI TEMPAT DUDUK | 815 mm |
| BERAT ISI | 137 kg |
| KAPASITAS TANGKI BENSIN | 11L |
| JARAK SUMBU RODA | 1325mm |
Rangka
| TIPE RANGKA | Deltabox |
| SUSPENSI DEPAN | Teleskopic Fork (Inverted) |
| SUSPENSI BELAKANG | Link Monoshock |
| BAN DEPAN | 100/80-17M/C 52P |
| BAN BELAKANG | 140/70-17M/C 66S |
| REM DEPAN | Disc brake |
| REM BELAKANG | Disc brake |
Kelistrikan
